FIT360^®

View the LATCH Installation Video

Remove Seat from Base

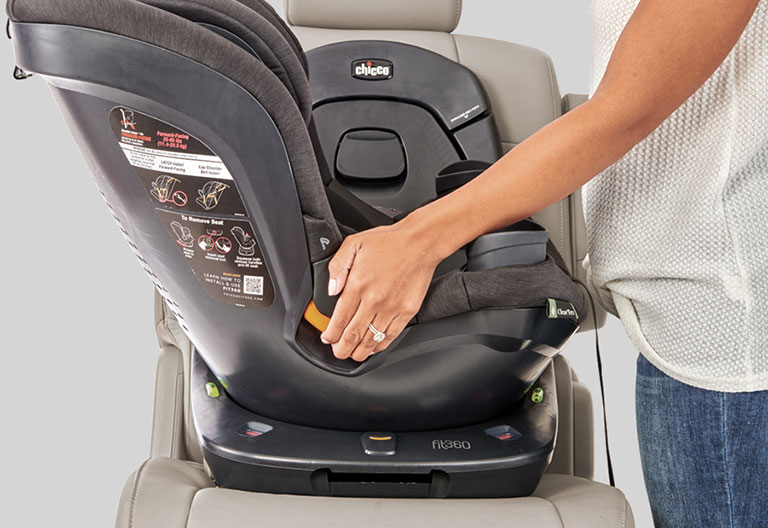

Squeeze one of the orange seat release handles on the side of the seat, then rotate the seat to the side.

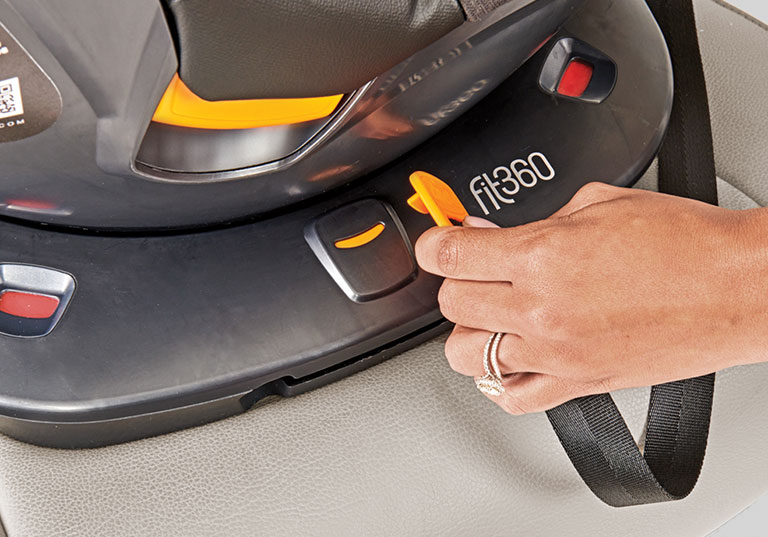

Locate the seat removal tool (attached to the harness adjustment strap). Insert the seat removal tool into the seat lock release and press firmly until it clicks.

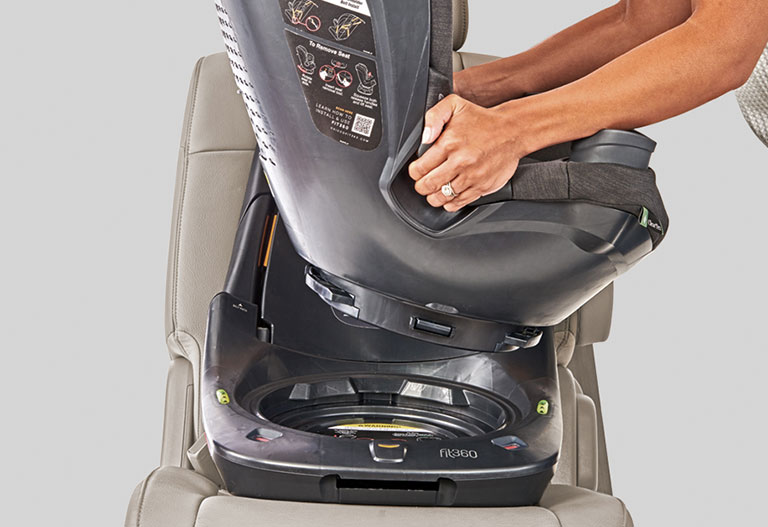

Squeeze both release handles and lift the seat from the base; set seat aside.

Quick Tip: Always use top tether when available. Before placing the base in the vehicle, remove top tether from storage clip on the back of the base. You will attach the top tether later in the process.

LeverLock^™ Base Install

Lap-Shoulder Vehicle Seat Belt Installation

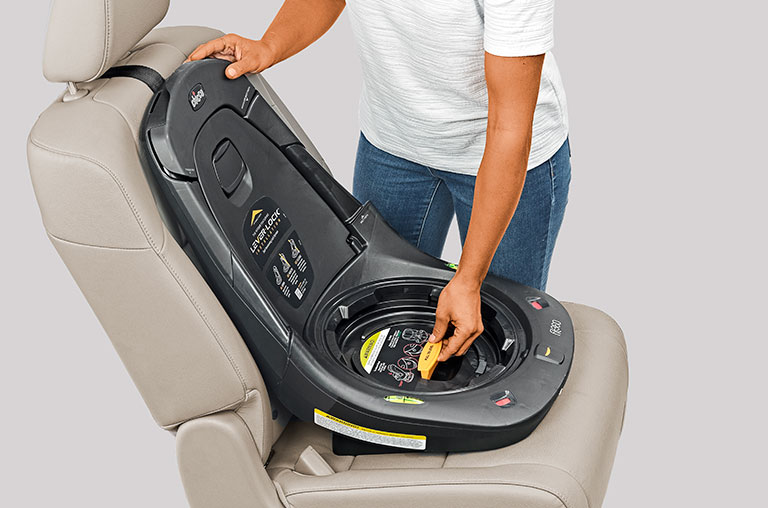

Recline and level the base by lifting up on the recline adjustment handle and sliding the base forward or backward until the bubble in the bubble level falls between the lines.

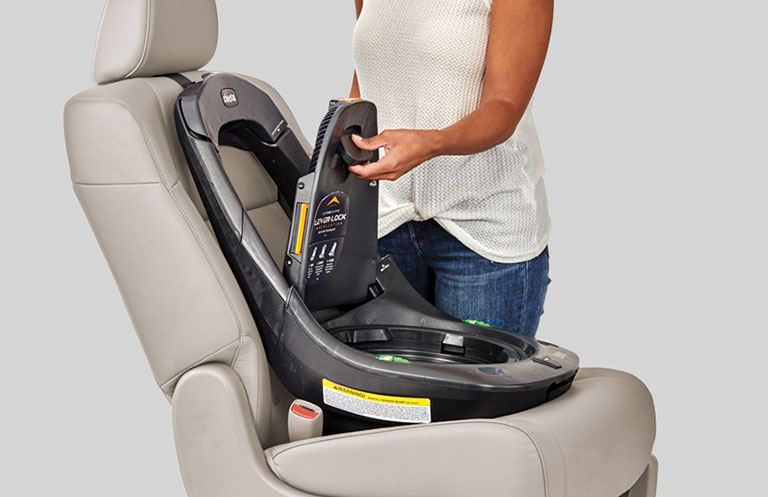

Lift up on the release handle at the top of the LeverLock^™ door and open the door.

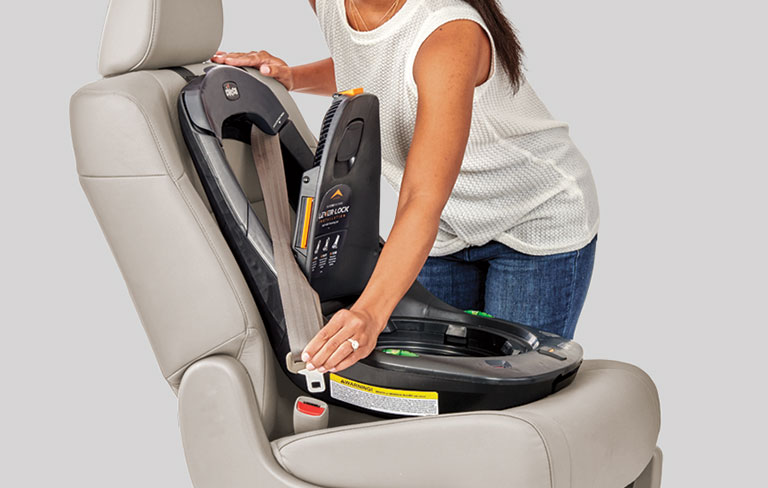

Route the vehicle seat belt behind the LeverLock^™ door and across both belt paths, then buck the seat belt. The lap belt lays flat over the belt path on both sides and shoulder belt slides into shoulder belt path area opposite from the buckle.

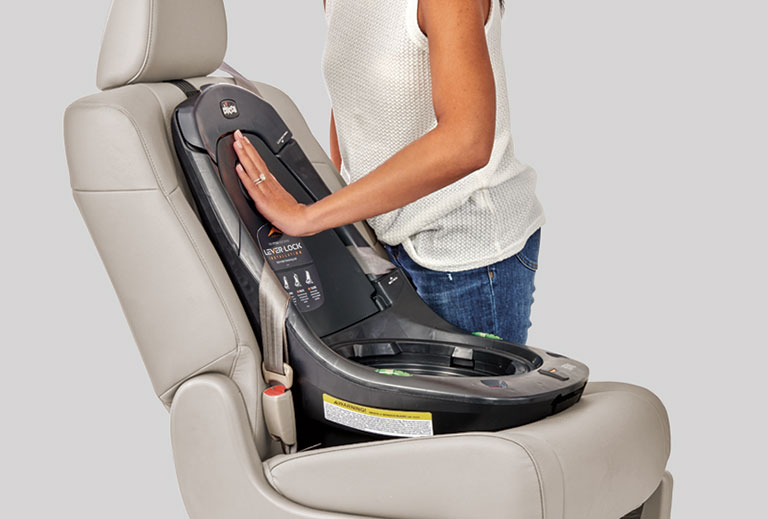

Remove belt slack and close door to locked position. Check installation.

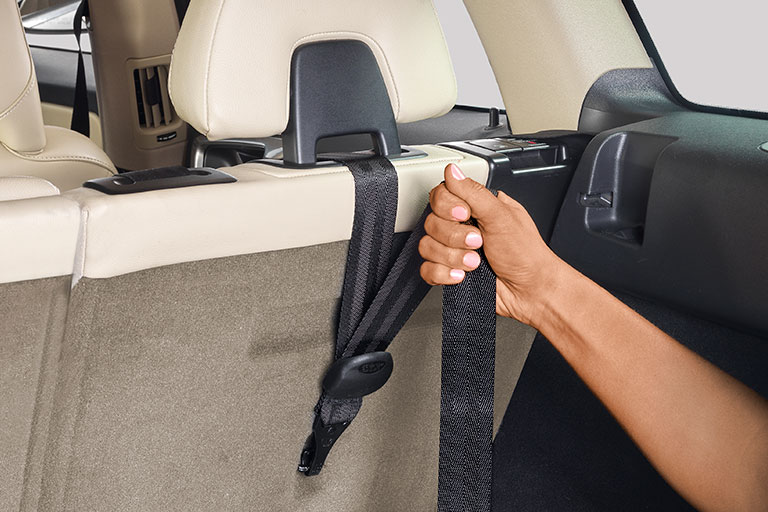

Locate tether anchors in your vehicle*. Attach tether hook to the anchor bar and pull strap tight.

Attach Seat to Base

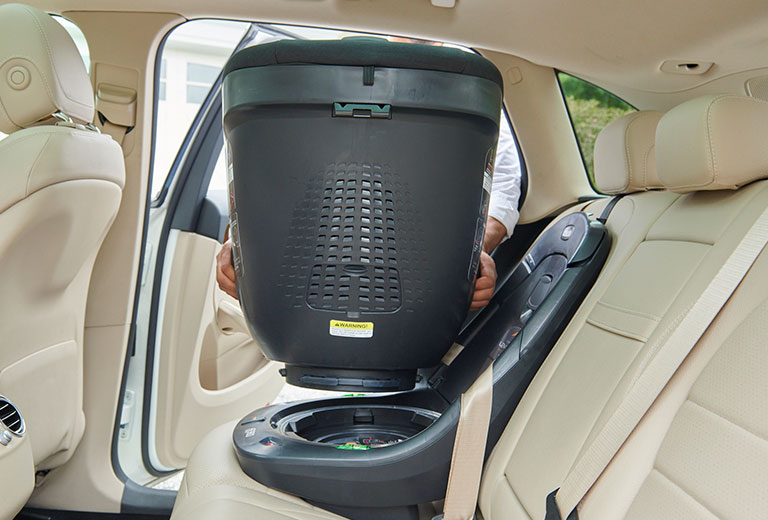

While holding the seat as shown, line up the seat bottom to the base and insert the seat until it clicks into position.
